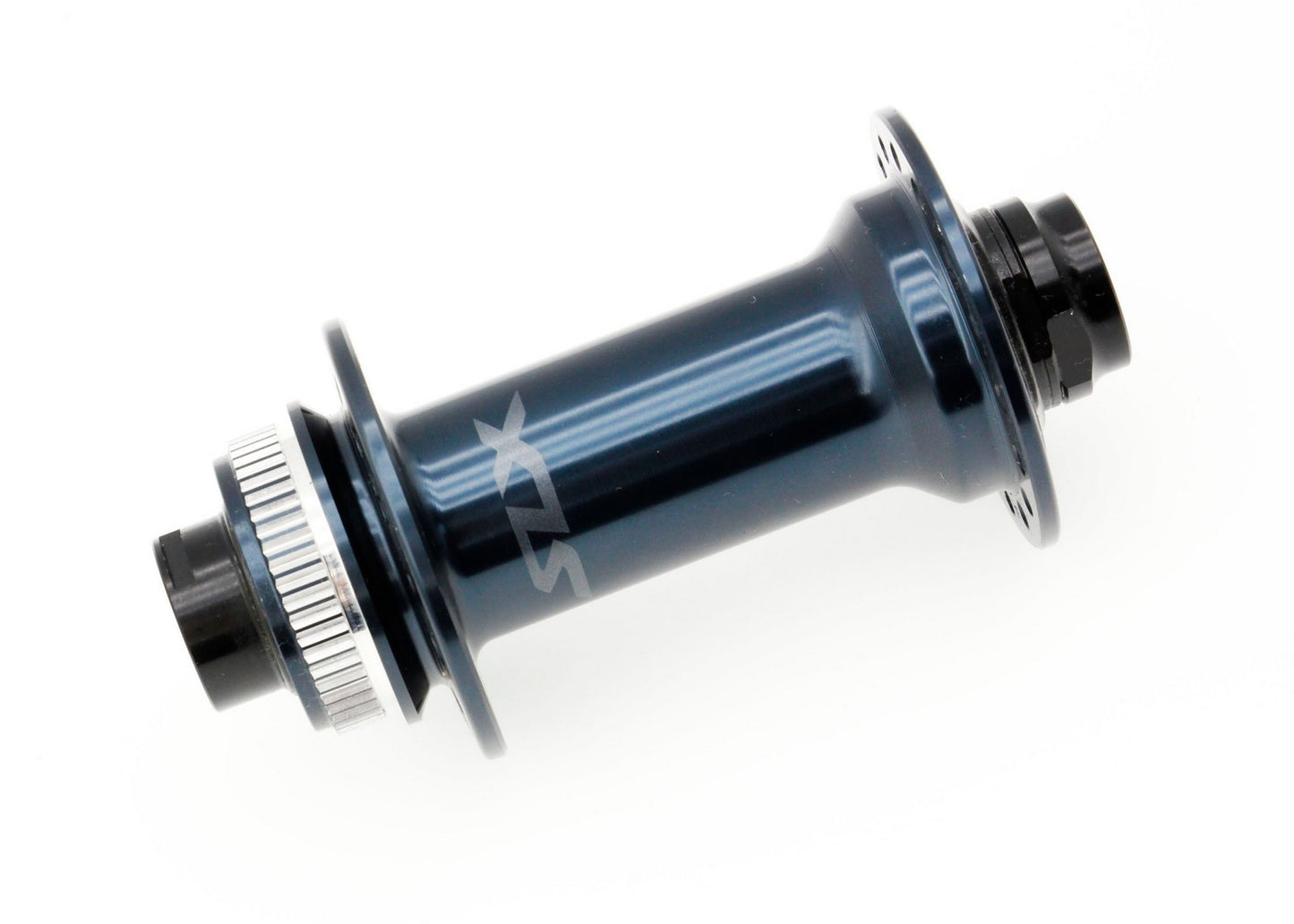

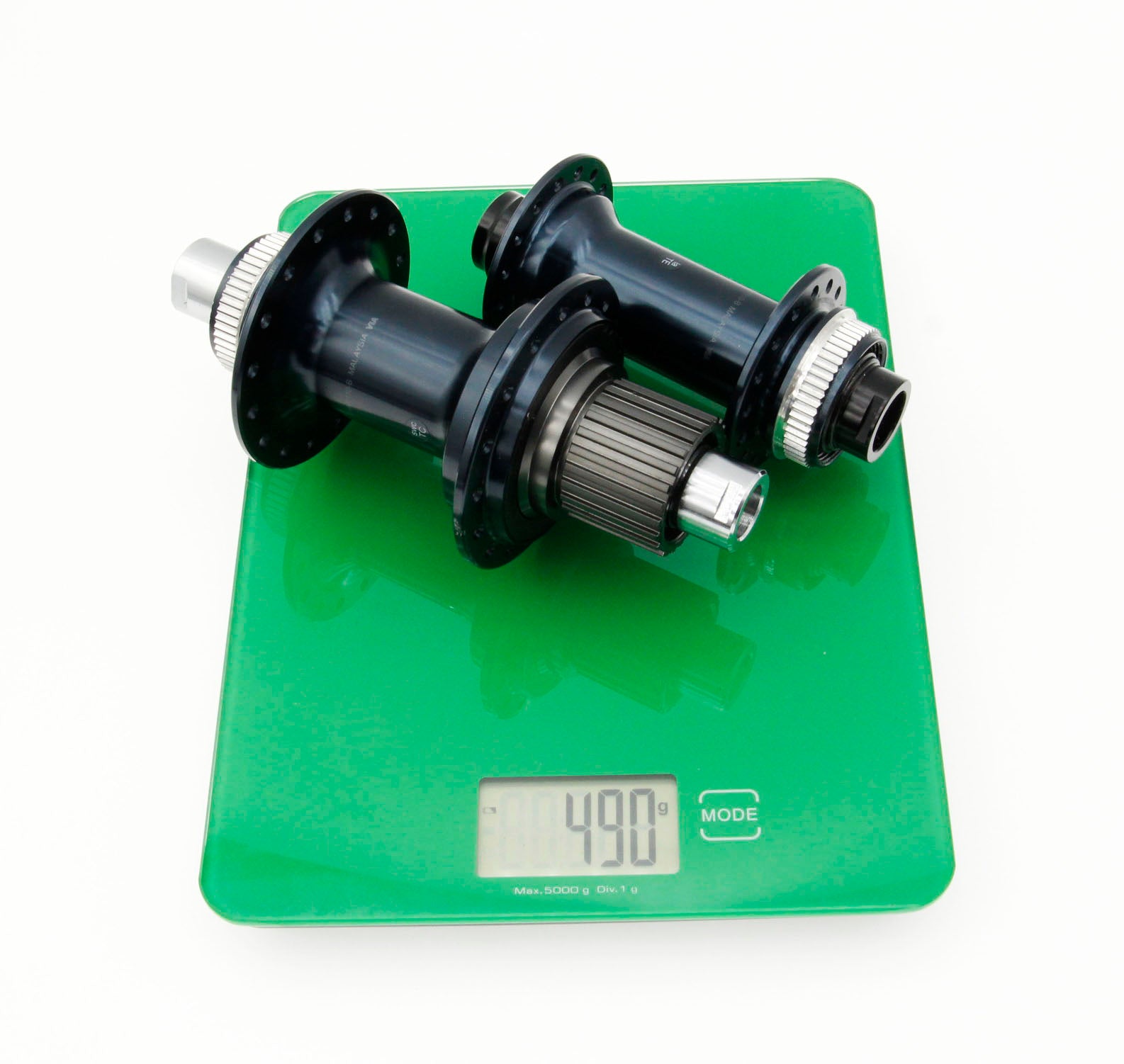

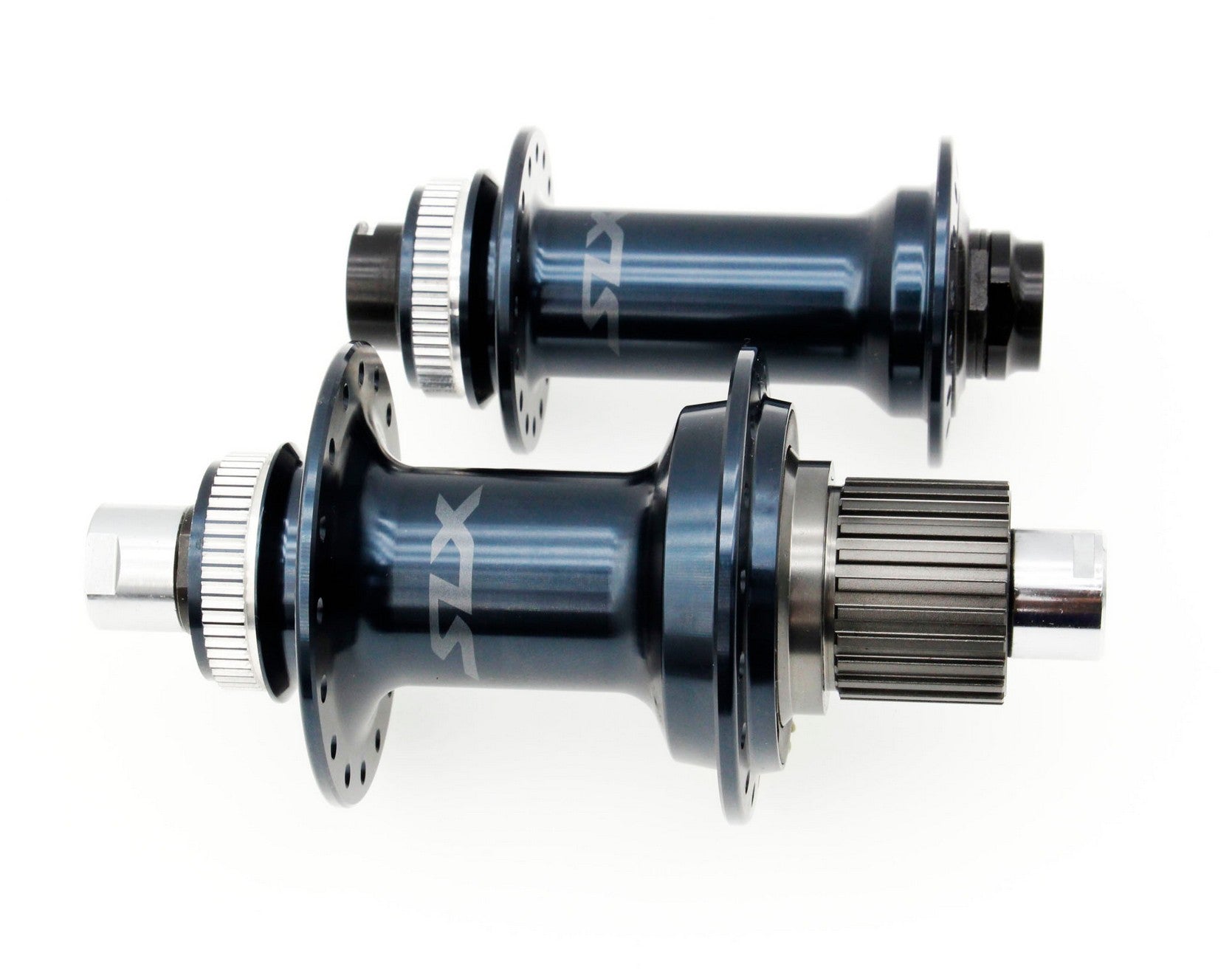

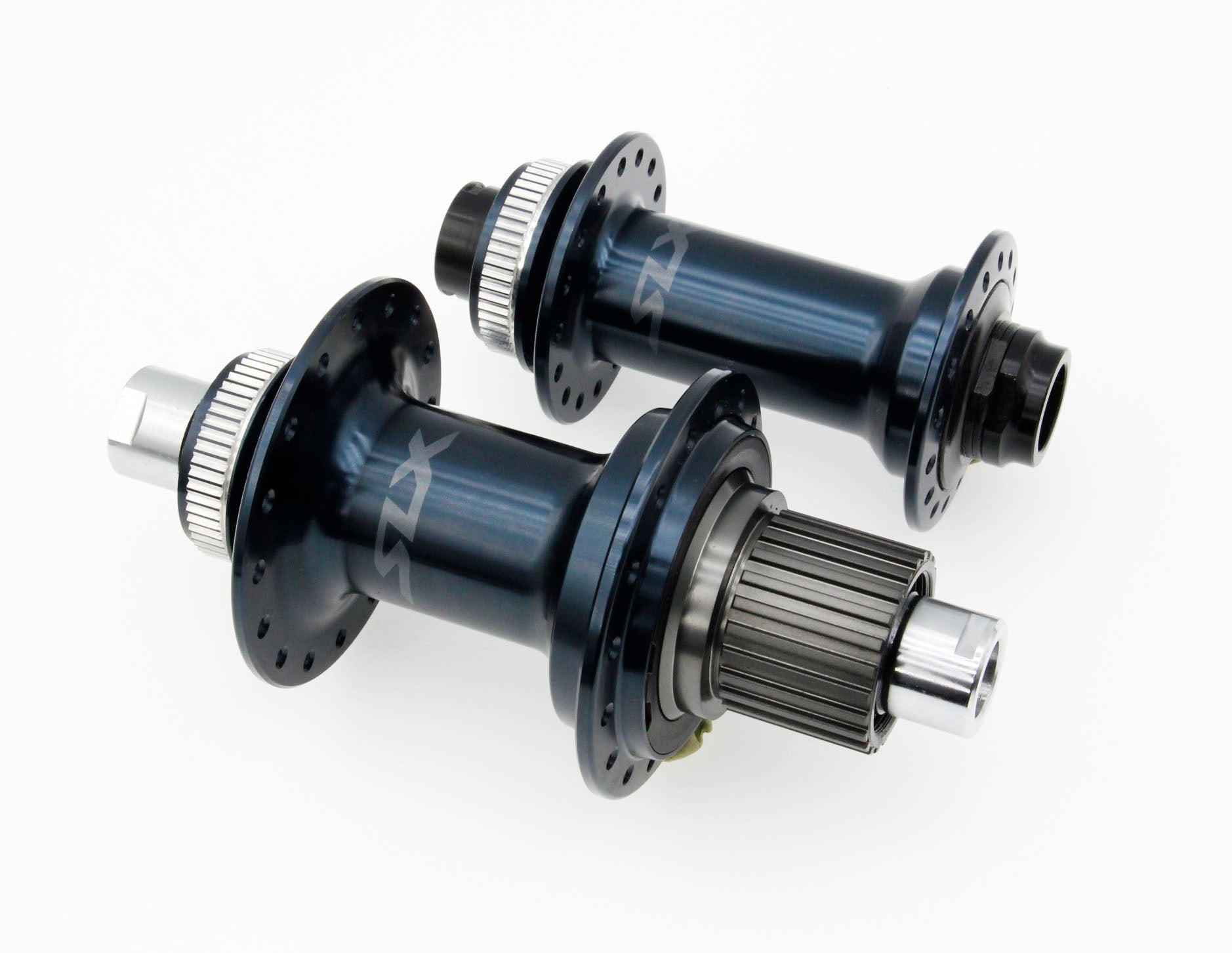

Shimano SLX FH-M7110 HB-M7110 Mountain eBike 12-Speed Bicycle Disc Brake Hub Set

With simple setup and reliable trail performance, the SLX front hub is perfect for custom MTB wheel builds.

FEATURES

CENTER LOCK

Simple setup and reliable trail performance

Easy disc brake rotor installation with spline mount and lock ring

E-THRU axle

Toolless 15 mm skewer system is stiff and lightweight

Labyrinth & Contact Sealing

O.L.D.: 110 mm

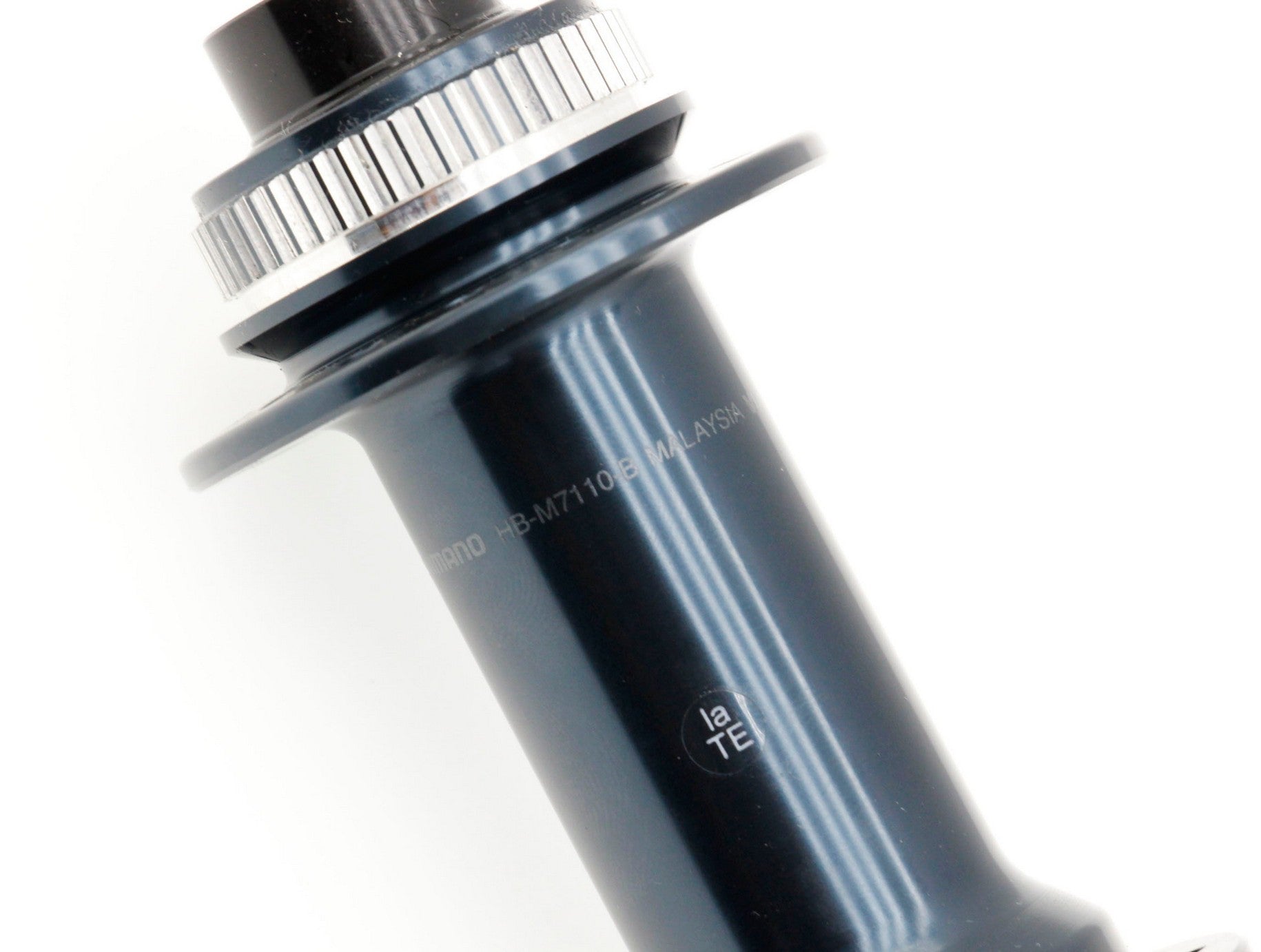

MODEL:HB-M7110-B

Brake type :CENTER LOCK disc brake

O.L.D. (mm) :110

Spoke hole : 32H

External serration disc brake rotor lock ring|without

Axle fixing method :15 mm E-THRU

Thru Axle (Length x Inner diameter ; mm) : 110 x 15

Flange distance (mm)    70.2

Offset (mm)    5.7

P.C.D. left / right (mm) : 44/44

Flange diameter (mm) : 52.8

Flange diameter Left/Right (mm)  :  52.8

Seal  :  Labyrinth+Contact

Internal grease sleeve

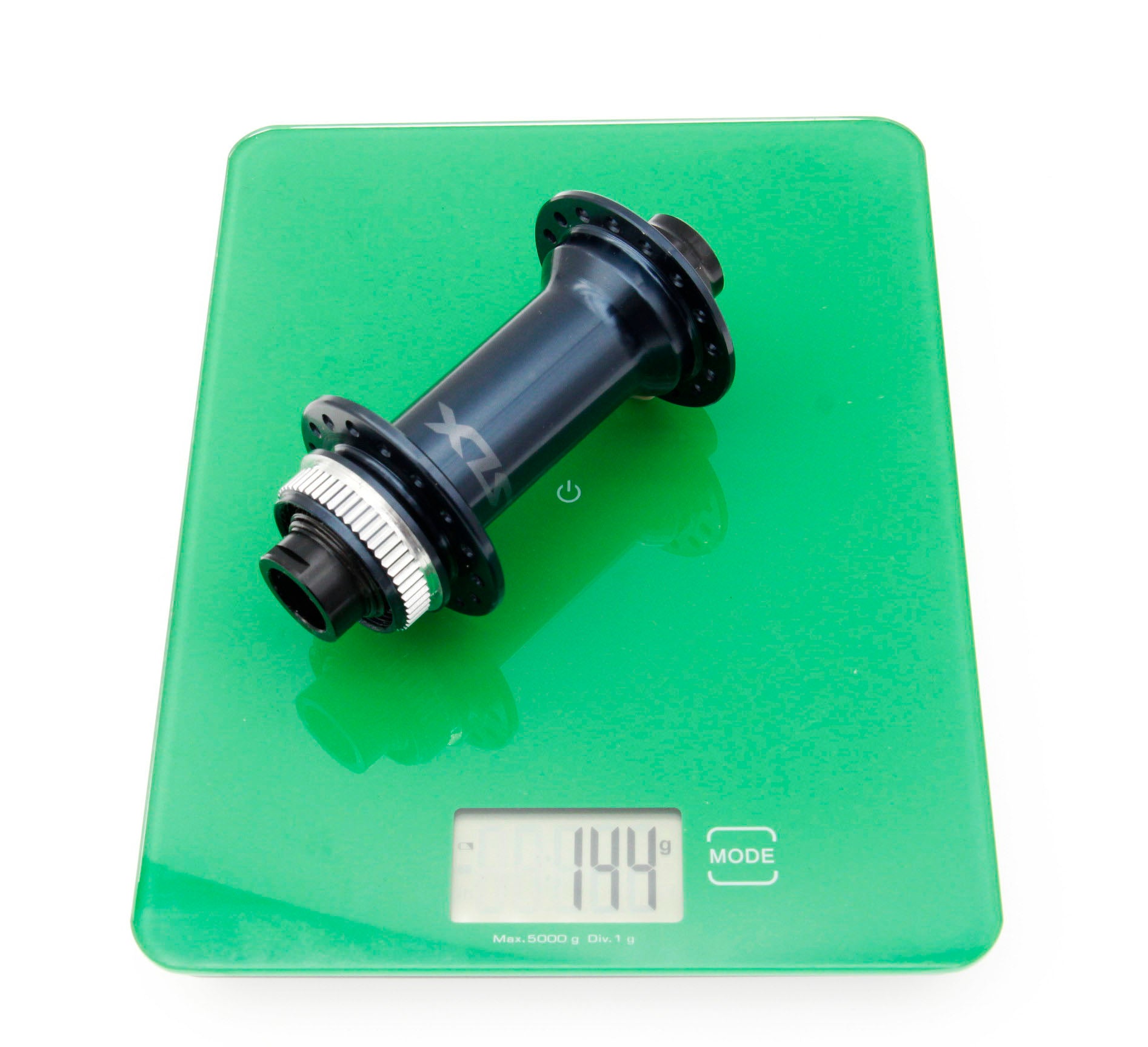

Weight:approx.144g / 5.14oz

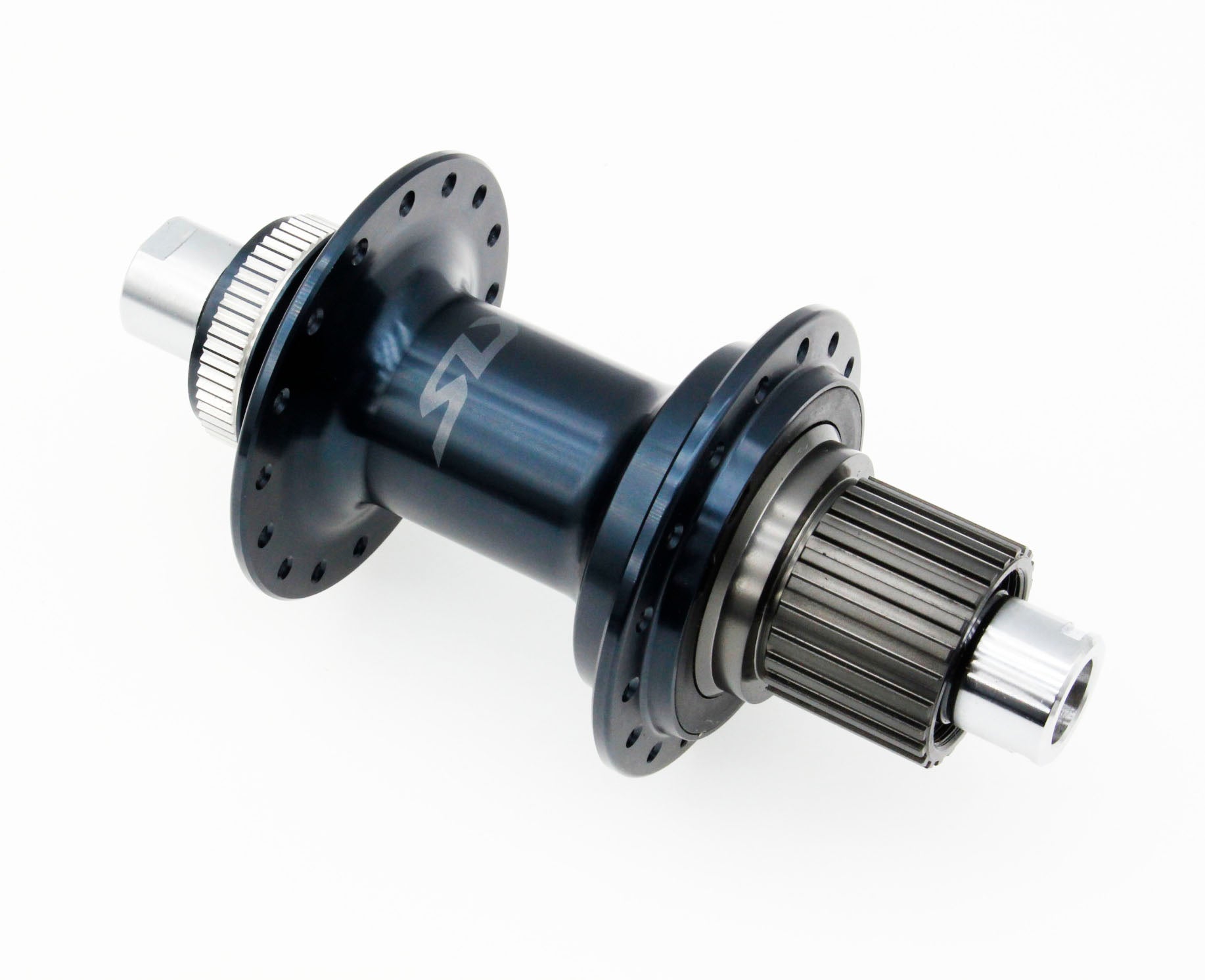

SHIMANO SLX FH-M7110  Rear FREEHUB 148x12mm E-THRU Axle 12-speed

Compatible with 12-speed MICRO SPLINE cassettes.

FEATURES

Faster acceleration amplifies riding excitement

Smaller spline diameter for 10T top gear by MICRO SPLINE

Simple setup and reliable trail performance

CENTER LOCK - Easy disc brake rotor installation with spline mount and lock ring

12 mm E-THRU axle O.L.D.: 148 mm

MODEL:FH-M7110-B

Brake type  :  CENTER LOCK disc brake

Rear speeds   : 12

O.L.D. (mm)    148

Spoke hole:32H

10 tooth cog compatible

Axle fixing method:12 mm E-THRU

Thru Axle (Length x Inner diameter ; mm):148 x 12

Flange distance (mm):62.16

Offset (mm):6.6

P.C.D. left / right (mm):61061

Flange diameter Left/Right (mm):68.8/69.8

MICRO SPLINE Engagement type : Direct engagement

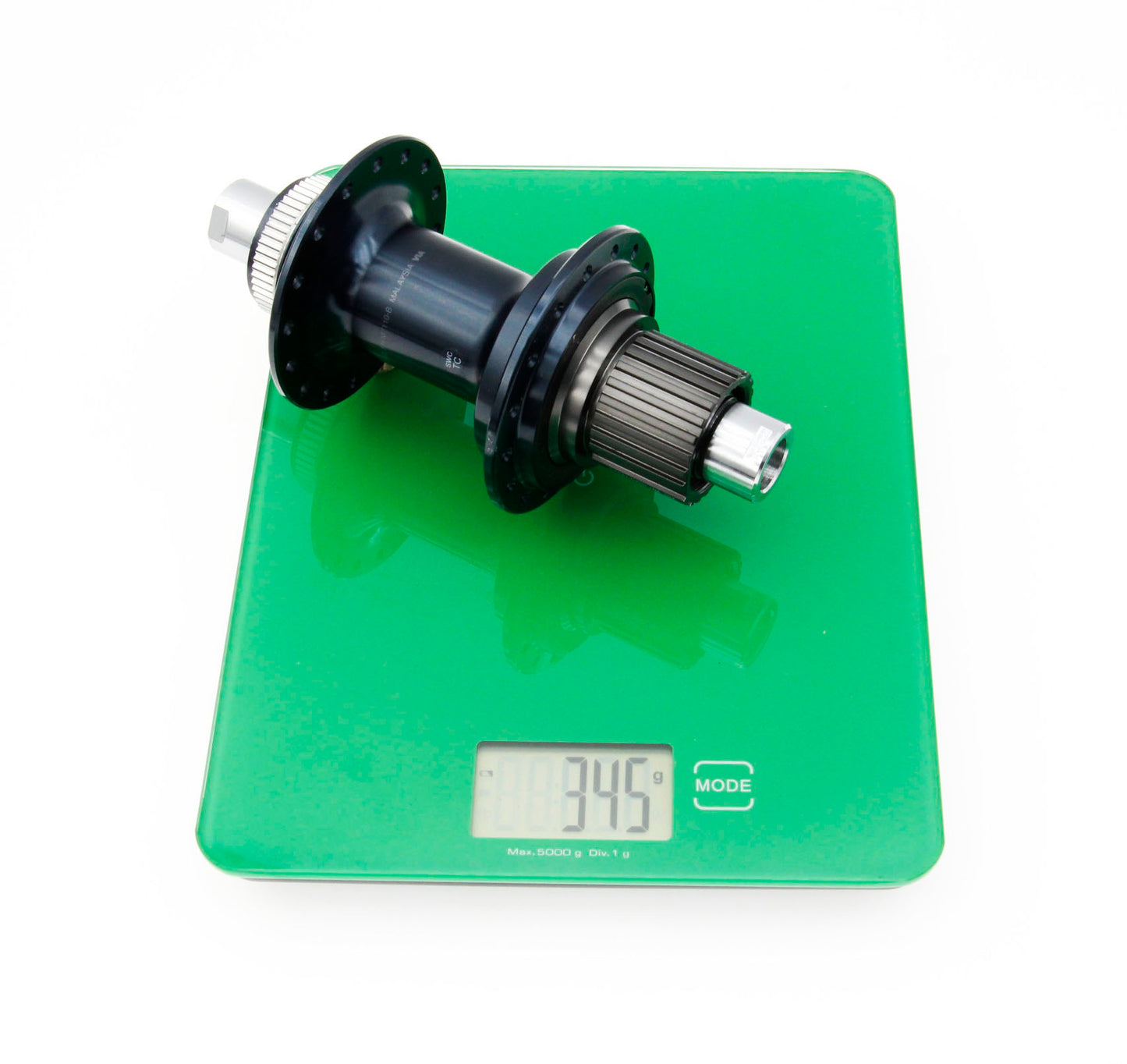

Weight:approx.345g/12.3oz
